SS-ZC Stainless Steel Prseeure Gauge (L)

SS-ZC Stainless Steel Prseeure Gauge (L)


Product name:SS-ZC Stainless Steel Prseeure Gauge (L)
Item:
Details:

SS-ZC Stainless Steel Prseeure Gauge (L)

Diameter:1-1/2,2,2-1/2,3,4,6

Case:304 stainless steel

Window:polycarbonate

Internal:brass,stainless steel

Inlet thread:1/8,1/4,3/8,1/2,NPT,BSPT,BSP

Connection:bottom connection,center back male connection

Range:0-10000psi

Scale:psi,bar,Mpa,Kpa,kg/cm2,Hg single or dual scale r accroding to customers order.

Oil composing:glycerine,silicone oil

Accuracy:2.5%,1.6%,1%





Diameter

Model

Installation

Range

(mpa)

Thread

Case Material

Accuracy





1-1/2''

SS-40

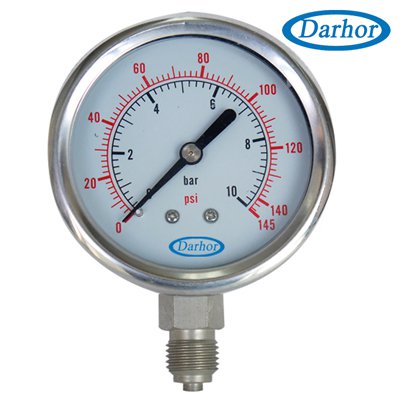

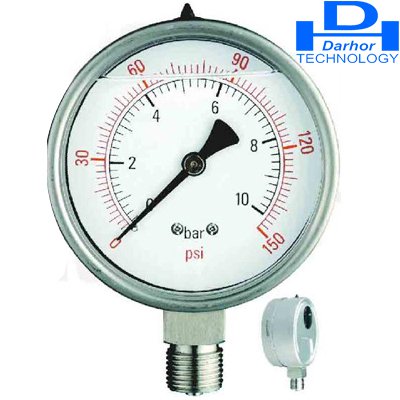

Bottom connection



0.1 0.16 0.25  0.4 0.6     1

1.6   2.5

4      6



G1/8''

ZG1/8''

Z1/8''

M10*1







SS304







+2.5

SS-40Z(C)

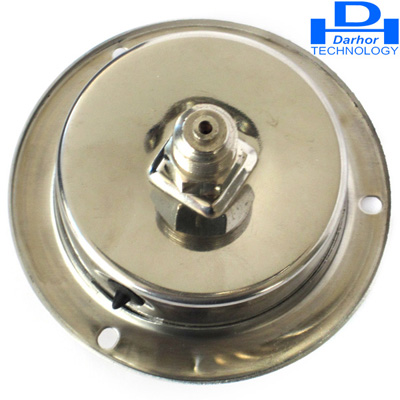

Back connection

SS-40ZT

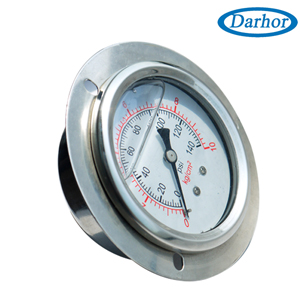

Back connection with border







2''

SS-50

Bottom connection

0.1  0.16

0.25  0.4

0.6    1

1.6   2.5

4      6

10    16

25    40

G1/8''  G1/4''

ZG1/8''

ZG1/4''

Z1/8''

Z1/4''

M14*1.5







SS304







+2.5

SS-50Z(C)

Back connection

SS-50ZT

Back connection with border

2-1/2''

SS-60

Bottom connection

0.1  0.16

0.25  0.4

0.6    1

1.6   2.5

4      6

10    16

25    40 60

G1/8''  G1/4''

ZG1/8''

ZG1/4''

Z1/8''

Z1/4''

M14*1.5







SS304







+2.5

SS-60Z(C)

Back connection

SS-60ZT

Back connection with border







3''

SS-75

Bottom connection

0.1  0.16

0.25  0.4

0.6    1

1.6   2.5

4      6

10    16

25    40 60

G1/8''  G1/4''

ZG1/8''

ZG1/4'

Z1/8''

Z1/4''

M14*1.5







SS304







+2.5

SS-75Z(C)

Back connection

SS-75ZT

Back connection with border





4''



SS-100

Bottom connection

0.1  0.16

0.25  0.4

0.6    1

1.6   2.5

4      6

10    16

25    40 60

G1/2''  ZG1/2''

Z1/2''

G3/8'

ZG3/8''

Z3/8''

M20*1.5









SS304







+1.6

SS-100Z(C)



Back connection

SS-100ZT



Back connection with border
