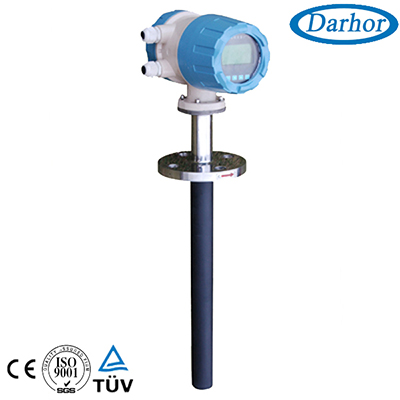

DH1000-B Integrate Battery power type

DH1000-B Integrate Battery power type


Product name:DH1000-B Integrate Battery power type
Item:USD350-900/piece
Details:

                                   DH1000-B Integrate Battery power type




   Reliable, High Accuracy Flowmeter for Food, Beverage and Pharmaceutical Applications.

Feature:

1.Smart design, enabling display of medium flow direction and empty tube

2.signal;

3.Two styles featured: compact and separate type;

4.Coming available in multiple models, such as tube-shaped and insertion model
               Powered by AC or DC in smart way, in two-wire mode, or using lithium cell


5.Wide flow range (30:1) and low initial flow rate for measurement (0.2m/s);

6.Adoption of EEPROM, ensuring impregnably secure storage of measurement & calculation data;

7.Displaying second, minute, hour, day, month and year;

8.Equipped with the communication interface RS-485 compatible with the protocol
              MODBUS and the HART compatible communication interface;


9.Simplified and tested structure; without movable parts and no intercepting or choking parts,
              thereby guaranteeing absence of pressure loss or fluid blockage;


10.Nonexistence of mechanical inertia leading to rapid response and excellent stability; capable
               of being applied in automatic detection, adjustment and program control system;

11.Accuracy in measurement not subject to the kind, temperature, viscosity, density, pressure and
                other physical properties of the medium;

12.l Diverse mixes of polytetrafluoroethylene or rubber linings and electrode materials
              (e.g. Hc, Hb, 316L and Ti etc.)
adapting the product to various media;

13.l Suitable for measuring a variety of corrosive fluids, including strong acid, strong alkali, and
               saline solution etc.;


Data sheet
<
Technical Performance Parameters
  Caliver    DN3~DN3000mm
  Nominal Pressure   0.6~4.0MPa(special pressure can be made to)
  Accuracy   ±0.5%,±0.3%or±0.2% are selectable
  Liner material   Teflon,PFA,F46,Neoprene,Polyurethane
  Electrode Type   General type ,scraper type and replaceable type
  Electrode material   Stainless steel SUS316,Hastelloy C,Titanium,Tantalum Platinum-iridium,Stainless steel covered with tungsten carbide
  Medium Temperature  Integral type  -20°C~+60°C
 Remote type  Neoprene & Polyurethane Liner  -10°C~+80°C
 PTFE Liner /PFA Liner /F46 Liner                 -10°C~+160°C
  Ambient Temperature   -25°C ~+ 60°C
  Ambient Humidity   5~100%RH(relative humidity)
  Medium Electrical conductivity   ≥20μ s/cm
  Measuring Range   1500:1,flow rate<15m/s
  Structure type    Integral type,remote type,submersible type,ex-proof type
  Protection Class   IP65,IP68(optional)
  Ex-proof Mark   ExmdT4
  Product Standard   JB/T 9248-1999 Electormagnetic Flowmete
