flow meter chemical resistant(old modle:LZS)

flow meter chemical resistant(old modle:LZS)

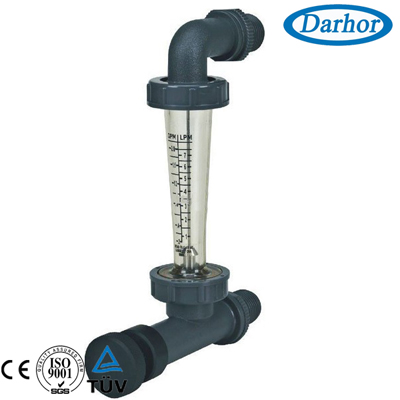

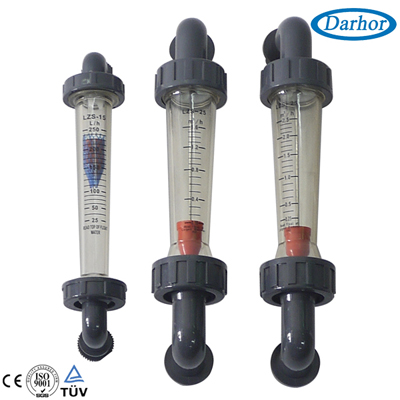

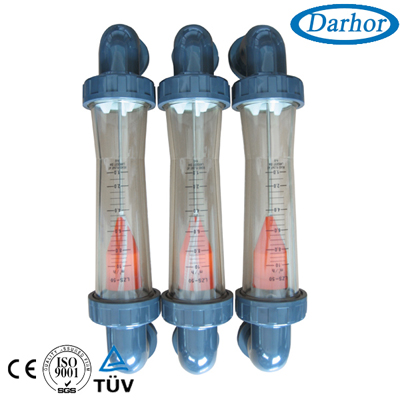

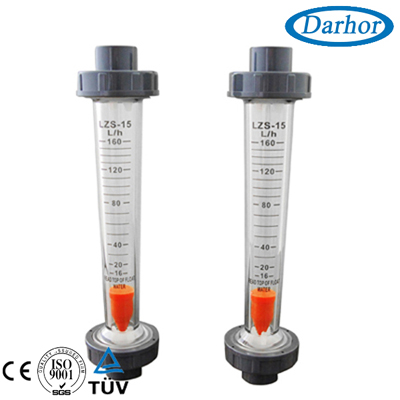

Product name:flow meter chemical resistant(old modle:LZS)
Item:USD8-USD25
Details:



corrosive applications flow meter

 DF-4500 Series polysulfone flowmeter

• Designed to be

• Easy to install.

• Chemically resistant molded polysulfone
• Water ranges from 0.1 LPM to 250 GPM
• Capable of withstanding higher temperatures
• Economical and durable

Meter Body: Polysulfone(PSU) or UPVC

Float: 316SS, , PVDF, or Teflon (based on model)

Guide rod: SS316 Stainless (opt. PTFE liner)

Adapters: Polysulfone

O-Rings: Viton

Scale: Permanent, dual scale silkscreen

Max. PSIg: 175 PSIG / 12 BAR at 70¡ãF/21¡ãC

Max. Temp: 212¡ãF / 100¡ãC at 0 pressure

Accuracy: + 4% of full scale reading



Model

DN

Flow Range

Accuracy

Temperature

Pressure

Mpa

GPM

LPM

DF-45015

15

0.1-1

0.2-2

0.5-5

0.5-4

1-7

1.8-18

±4%

0-60

1-100

1

DF-45015C

15

0.1-1

0.2-2

0.5-5

0.5-4

1-7

1.8-18

DF-45025

25

0.8-8

1-10

3-30

4-40

DF-45032

32

1.2-12

2-20

2.5-25

5-50

8-80

10-100

DF-45050

50

2.5-25

5-45

7-70

10-100

20-180

25-250

DF-45065

65

25-110

40-160

50-250

80-400

150-650

200-1000




Dimensions for installation:

Model

L

D

     Joint

  Male

Female

        Elbow

L1

B1

B2

L2

C

L3

E

L4

F

G

A

H

DF-45015

100

42

150

20

26

170

1/2 BSP

1/2NPT

/

/

155

52

27

13

1/2 BSP

1/2NPT

DF-45015C

160

50

210

20

26

225

1/2 BSP

1/2NPT

210

1/2 BSP

1/2NPT

220

56

27

13

1/2 BSP

1/2NPT

DF-45025

170

Ф59

230

32

39

250

3/4NPT

225

3/4 BSP

3/4NPT

270

70.5

28

20

3/4 BSP

3/4NPT

DF-45032

225

72

290

40

49

310

1NPT

290

1 BSP

1NPT

345

86

35

26

1 BSP

1NPT

DF-45050

290

98

375

63

73

400

2NPT

370

2NPT

440

109

40

45

2 BSP

2NPT

DF-45065

325

120

420

75

89

445

3/2NPT

420

3/2NPT

/

/

/

/

/
